Core Differences Between Layer 2 and Layer 3 Switches
I. Working Layers and Core Capabilities
Layer 2 Switch
· Layer Positioning: The data link layer (Layer 2) of the OSI model, realizing local forwarding of data frames based on MAC addresses.
· Core Task: Establishing direct interconnections between devices within a local area network to ensure efficient communication within the same network segment.
· Functional Limitation: Unable to recognize IP addresses, it can only handle communication requirements within the same broadcast domain, and relies on routers for communication across network segments.
———————————————————————————————————————————————————
Related products as follows:

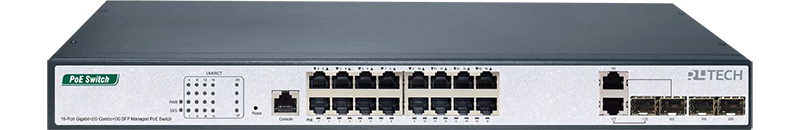

Layer 2 Switch, RGS5200-20P: 16*1GE + 2*1G RJ45/SFP+ Combo +2*1G SFP , 30W PoE port, POE Budget 250W
———————————————————————————————————————————————————
Layer 3 Switch
· Layer Positioning: The network layer (Layer 3) of the OSI model, integrating switching and routing capabilities, and supporting dual parsing of MAC addresses and IP addresses.
· Core Task: Realizing communication across subnets or VLANs, with both high-speed switching and intelligent routing functions.
· Functional Expansion: Directly processing data packets between different network segments without the need for additional routing devices to intervene.
———————————————————————————————————————————————————
Related products as follows:

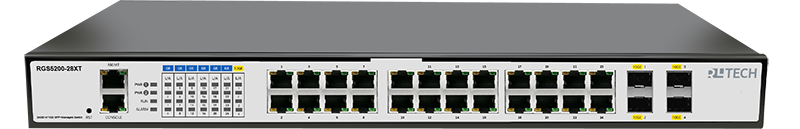

Layer 3 Switch, RGS5200-28XT: 24*1GE + 4*10G SFP+
———————————————————————————————————————————————————
II. Comparison of Working Mechanisms
Working Logic of Layer 2 Switches
Driven by the MAC Address Table:
Learning and recording the mapping relationship between ports and the MAC addresses of connected devices.
When receiving a data frame, determining the forwarding path only according to the destination MAC address.
Forwarding Strategy:
·Precise Matching: If the destination MAC exists in the table, directly forwarding it to the corresponding port.
·Broadcast Flooding: When the destination MAC is not recorded, flooding it to all non-source ports.
Typical Application Scenarios:
Interconnection of terminal devices within the same VLAN (such as office PCs and printers).
Working Logic of Layer 3 Switches
Driven by the Collaboration of Two Tables:
· MAC Address Table: Used for Layer 2 switching within the same subnet.
· Routing Table: Storing information about IP network segments and the next hop, guiding communication across subnets.
Hardware-Accelerated Routing:
Realizing wire-speed processing of IP routing through ASIC chips, avoiding the software processing bottleneck of traditional routers.
Forwarding Strategy:
If the destination IP belongs to a different subnet, querying the routing table to determine the forwarding interface and re-encapsulating the data frame.

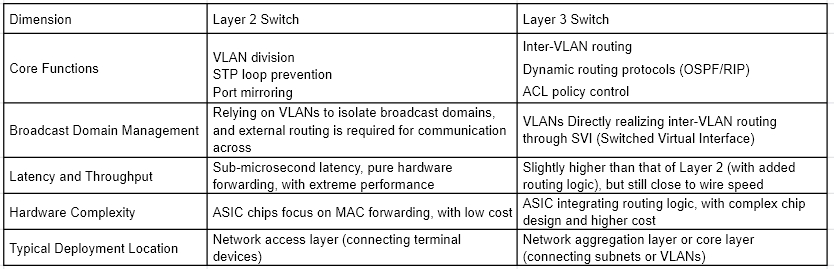

III. Differences in Functional Features and Performance
IV. Application Scenario Selection Guide
Scenarios Where Layer 2 Switches are Preferred
· Small Office Networks: Connecting devices such as computers and printers within a single network segment, and cooperating with routers to achieve external network access.
· Cost-Sensitive Projects: When the budget is limited, using the combination of "Layer 2 switch + router" to meet basic requirements.
· High-Density Access Layer: Deployed at ToR (Top of Rack) within data center cabinets, focusing on the interconnection of terminal devices.
Scenarios Where Layer 3 Switches Must be Used
· Enterprise-Level Core Networks: Dividing different VLANs for multiple departments, and requiring high-speed communication across subnets (such as the interconnection between the Finance Department and the R&D Department).
· Dynamic Routing Requirements: Achieving automatic path optimization through OSPF/BGP protocols in large campus networks.
· Policy-Based Traffic Management: Advanced functions such as QoS priority marking based on IP addresses and ACL access control.

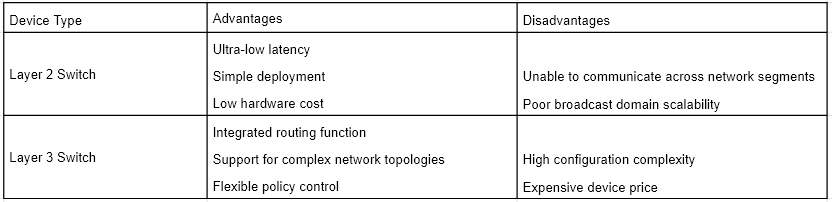

V. Comparison of Advantages and Disadvantages and Decision-Making Suggestions
Decision-Making Suggestions:
· Simple Networks (Single subnet, low management requirements): Give priority to Layer 2 switches, and cooperate with routers to handle external network access.
· Complex Networks (Multiple subnets, dynamic routing, policy control): It is necessary to deploy Layer 3 switches as the core hub.
· Transition Solutions: In scenarios where the budget is limited but scalability is required, Layer 3 switches supporting basic static routing (such as some enterprise-level models) can be selected.
============================================================================================
If you want to learn more about related Switch products, you can contact us.
Related products as follows:
Layer 2 Switch:
Layer 2 Switch, RGS3200-10P: 8*1GE + 2*1G SFP+ , 30W PoE port, POE Budget 90W
Layer 2 Switch, RGS5200-20P: 16*1GE + 2*1G RJ45/SFP+ Combo +2*1G SFP , 30W PoE port, POE Budget 250W
Layer 3 Switch:
Layer 3 Switch, RGS5200-28XP: 24*1GE + 4*1GSFP+ , 30W PoE port, POE Budget 380W
Layer 3 Switch, RGS5200-28XT: 24*1GE + 4*10G SFP+
Layer 3 Switch, RGS5300-28XF:4*10G SFP+ + 4*1G RJ45/SFP+(Combo) + 20*1G SFP+:
Layer 3 Switch, RGS6300-26QS: 2*QSFP28 100G + 4*10G RJ45/SFP+(Combo) +20*10G SFP+
